Model Representation and Training

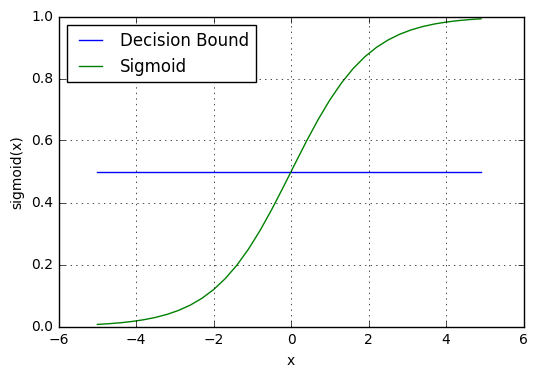

We will use the same function as used in linear regression, given by (WX + b) where X is our input and W and b are our parameters, which are learnt during training. Only this time, we will transform the output using the logistic function to return a value between 0 and 1. Let us call this parameterised logistic function, S_{W, b}(X)). We have:

                            S_{W, b}(X) = \frac{1}{1 + e^{-(WX + b)}}


                            \begin{aligned}
                            L_{(W, b)} \equiv L((W, b) \mid y ; X) &=\prod_{i = 1}^N S_{W, b}\left(X_{i}\right)^{y_{i}}\left(1 - S_{W, b}\left(X_{i}\right)\right)^{\left(1-y_{i}\right)}
                            \end{aligned}


                            \begin{aligned}
                            \frac{1}{N}log(L_{(W, b)}) \equiv \frac{1}{N}log (L((W, b) \mid y ; X)) &=\frac{1}{N}\sum_{i = 1}^N \left( y_{i}*log(S_{W, b}\left(X_{i}\right)) + \left(1-y_{i}\right)*log\left(1 - S_{W, b}\left(X_{i}\right)\right) \right)
                            \end{aligned}


                            J(W, b) = -\frac{1}{N}\sum_{i = 1}^N\left(y_i*log(S_{W, b}(X_i))) + ((1-y_i)*(log(1-S_{W, b}(X_i)))\right )


Implementation in Python

We will first code a simple logistic regression model for a sample dataset only using NumPy in Python. This is to understand how things work on a deeper basis. Another Python code for the same using Python's libraries will be added. This is for the reader to also get used to using the existing libraries.

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
%matplotlib inline
import seaborn as sns
import sklearn
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import StandardScaler
from sklearn.metrics import accuracy_score

# Let us first create our input Data. We look to having 2 features (x and y co-ordinate) and 2 labels: 0 and 1
np.random.seed(10)
num_observations = 1000

# Create a 2-dimensional Gaussian Distribution. We make 2 distributions, one for each label.
mean1 = (0, 0) # Mean of first distribution
mean2 = (2, 4) # Mean of second distribution
cov = [[1, 0], [0, 1]] # Co-variance of both distributions
data1=[]
x1, y1 = np.random.multivariate_normal(mean1, cov, num_observations).T
x2, y2 = np.random.multivariate_normal(mean2, cov, num_observations).T
for i in range(len(x1)):
    t1 = x1[i]
    t2 = y1[i]
    data1.append([t1,t2,1])
for i in range(len(x1)):
    t1 = x2[i]
    t2 = y2[i]
    data1.append([t1,t2,0])

# Convert to DataFrame
data = pd.DataFrame(data1)
data.columns=['x', 'y', 'label']
column = data["x"]

# Plot the input data
fig = plt.figure()
ax1 = fig.add_subplot(111)
plt.xlabel('x - coordinate')
plt.ylabel('y - coordinate')
ax1.scatter(data[0:num_observations]['x'], data[0:num_observations]['y'], label='Positive Label')
ax1.scatter(data[num_observations:2*num_observations]['x'], data[num_observations:2*num_observations]['y'], label='Negative Label')
plt.legend(loc='best')
plt.title('Input Data Scatter Plot')
plt.show()

# Save the input training data as feature values and corresponding label
inp_df = data.drop(data.columns[[2]], axis=1)
out_df = data.drop(data.columns[[0,1]], axis=1)

# Standardize features by removing the mean and scaling to unit variance
scaler = StandardScaler()
inp_df = scaler.fit_transform(inp_df)

# Split training data into training data and testing data
X_train, X_test, y_train, y_test = train_test_split(inp_df, out_df, test_size=0.2, random_state=20)
y_tr_arr = y_train.to_numpy()
y_ts_arr = y_test.to_numpy()
print('Input Shape', (X_train.shape))
print('Output Shape', X_test.shape)

def logistic(x):
    final_result = 1/(1+np.exp(-x))
    return final_result

def model_optimize(w, b, X, Y):
    m = X.shape[0]

    # Prediction
    final_result = logistic(np.dot(w,X.T)+b)
    Y_T = Y.T

    # Log-likelihood, but with a negative sign, because with gradient descent, we look to minimising the loss function, which in our case is the log-likelihood
    cost = (-1/m)*(np.sum((Y_T*np.log(final_result)) + ((1-Y_T)*(np.log(1-final_result)))))

    # Gradient calculation
    dw = (1/m)*(np.dot(X.T, (final_result-Y.T).T))
    db = (1/m)*(np.sum(final_result-Y.T))

    grads = {"dw": dw, "db": db}

    return grads, cost

def model_predict(w, b, X, Y, learning_rate, no_iterations):
    costs = []
    for i in range(no_iterations):
        grads, cost = model_optimize(w,b,X,Y)
        dw = grads["dw"]
        db = grads["db"]
        # Update the Weights
        w = w - (learning_rate * (dw.T))
        b = b - (learning_rate * db)

        if (i % 100 == 0):
            costs.append(cost)

    # Final parameters
    coeff = {"w": w, "b": b}
    gradient = {"dw": dw, "db": db}

    return coeff, gradient, costs

def predict(final_pred, m, threshold):
    # A threshold is added, so the user can play with this number to see how the accuracy changes.
    y_pred = np.zeros((1,m))
    for i in range(final_pred.shape[1]):
        if final_pred[0][i] > threshold:
            y_pred[0][i] = 1
    return y_pred

# Get number of features, which in our case is 2
n_features = X_train.shape[1]
print('Number of Features', n_features)

# Initialise parameters. Since our example is a very simple one, we will take up initialisation to zero.
w = np.zeros((1,n_features))
b = 0

# Set Threshold
t = 0.5

# Perform Gradient Descent
coeff, gradient, costs = model_predict(w, b, X_train, y_tr_arr, learning_rate=0.0001,no_iterations=4500)
w = coeff["w"]
b = coeff["b"]
print('Optimized weights', w)
print('Optimized intercept',b)

final_train_pred = logistic(np.dot(w,X_train.T)+b)
final_test_pred = logistic(np.dot(w,X_ts_arr.T)+b)
m_tr =  X_train.shape[0]
m_ts =  X_test.shape[0]

# Get Training Accuracy
y_tr_pred = predict(final_train_pred, m_tr, t)
print('Training Accuracy',accuracy_score(y_tr_pred.T, y_tr_arr))

# Get Testing Accuracy
y_ts_pred = predict(final_test_pred, m_ts, t)
print('Test Accuracy',accuracy_score(y_ts_pred.T, y_ts_arr))

Number of Features 2
Optimized weights [[-0.14523948 -0.18649513]]
Optimized intercept -0.0031321592899463723
Training Accuracy 0.981875
Test Accuracy 0.9825

The code for the same using scikit-learn in Python is available here. scikit-learn is a simple machine learning library in Python and building machine learning models are comparatively very easy using scikit-learn rather than coding for the algorithms yourself. However, for a deeper understanding it is a good exercise to code such simple models from scratch. Once that foundation is built, one can switch to libraries like scikit-learn for a faster and more efficient experience.

Classification Through Logistic vs. Linear Regression

Logistic regression tells you the probability that your input belongs to the "positive" class. So when we set a threshold on the probability, we obtain a classifier. Linear regressors try to interpolate/extrapolate the output and predict the value for x. It is more suitable for problems like prediction. One reason as to why one should not use a linear regressor for a classification problem is that, when there is an outlier belonging to one of the classes, that outlier plays a heavy role in deciding the parameter values, and this can lead to a bad model. The following figure explains this issue, rather nicely:

But in the case of logistic regression, we'd have the following output:

For a multi-class classification problem, (which can be done using LReg) using the linear regression would be difficult when one is defining the distance metric. We might get different results just by shuffling the labels of the classes or changing the scale of assigned numeric values. When the value of a feature with a positive weight is higher compared to the others, it contributes more to the parameter updates, because it has a higher weight. Considering if one has read the next section on Multi-class classification using LReg, one can see that the sigmoid function squeezing all labels between 0 and 1 plays an important role here so that all labels have the same weight, irrespective of what value they were given initially. This acts somewhat like a normalising mechanism. Hence we see that linear regression would be a bad algorithm to use in this case.

As explained in [4], Logistic regression can suffer from complete separation. If there is a feature that would perfectly separate the two classes, the logistic regression model can no longer be trained. This is because the weight for that feature would not converge because the optimal weight would be infinite. This is really a bit unfortunate because such a feature is really useful. The problem of complete separation can be solved by introducing penalization of the weights or defining a prior probability distribution of weights. LReg is not only a classification model, but it also gives one, an idea of how probable that example belongs to that label. It is somewhat like an additional piece of information. Knowing that an example has a 99% probability for it to belong to a class compared to 60% makes a big difference.

LReg doesn't require high computation power and it is easy to implement. LReg will not be able to handle a large number of categorical features/variables and it will also not perform well with independent variables that are not correlated to the target variable and are very similar/correlated to each other.

Multinomial Logistic Regression

A multinomial logistic regression problem is one where you perform logistic regression for a problem where you have multiple classes/labels (unlike just 2 in LReg). Let us say our labels are 1, 2, 3 ... n. How we go about solving this problem is that we divide the problem into n binary classification problems. The i^th binary problem will have 2 classes: i and NOT i. We then predict the probability of all n such binary classification problems.
Let us say p(i) is the probability of the i^th binary classification problem.
Then our Prediction = argmax(p(i)).
Ofcourse, we do not need to always select the argument of the maximum probability to be our prediction, here can be other rules depending on the initial problem.

References

1. Logistic regression. Wikipedia.org. (2020). Retrieved 24 October 2020, from https://en.wikipedia.org/wiki/Logistic_regression.
2. Logistic Regression. Machine Learning Glossary. (2020). Retrieved 24 October 2020, from https://ml-cheatsheet.readthedocs.io/en/latest/logistic_regression.html.
3. Mishra, S. (2020). Logistic Regression. Lecture, NISER, Bhubaneswar.
4. Molnar, C. (2020). Logistic Regression. Interpretable Machine Learning. Retrieved 24 October 2020, from https://christophm.github.io/interpretable-ml-book/logistic.html.
5. S, S. (2020). Logistic Regression Vectorized Implementation. GitHub. Retrieved 24 October 2020, from https://github.com/SSaishruthi/LogisticRegression_Vectorized_Implementation.
6. Why not approach classification through regression?. Cross Validated - Stack Exchange. (2020). Retrieved 24 October 2020, from https://stats.stackexchange.com/questions/22381/why-not-approach-classification-through-regression.
